Racing Beat

$call
11446

Lightweight Steel Flywheel 89-95 TII & FD

The weight of the stock flywheel is 22 lbs (89-91) and 19 lbs (93-95), compared to 17 lbs for the Racing Beat Flywheel. The actual reduction in inertia from stock is much greater than the weights suggest, since the stock flywheel is 1 to 2 inches thick at its outside edge.

Racing Beat

$call
11449

Lightweight Aluminum Flywheel 87-95 Turbo

The Aluminum Flywheel has a tuft-rided steel friction surface for long life. Intended primarily for road racing and rallying, this kit reduces the flywheel weight up to 55 percent of the original, and reduces the flywheel inertia up to 80 percent of the original. The ring gear is bolted in place for security. The kit includes the rear balance weight and all the hardware necessary for installation, including special bolts which attach the pressure plate without modification.

The weight of the stock flywheel is 22 lbs (89-91) and 19 lbs (93-95) compared to 12 lbs for the Racing Beat flywheel.

Racing Beat

$call
11444

Lightweight Steel Flywheel 86-88 Non-Turbo

The weight of the stock flywheel is 24 lbs compared to 17 lbs for the Racing Beat Flywheel. The actual reduction in inertia from stock is much greater than the weights suggest, since the stock flywheel is 1 to 2 inches thick at its outside edge.

The Lightweight Steel Flywheel will bolt up to any pressure plate that will bolt to the stock flywheel (except the Rotary Pickup), and it uses the original bolts. It is also recommend to replace the throw-out bearing during any clutch work to ensure trouble free performance. Also, we recommend replacing the transmission front and rear seal kit when re-installing the transmission to reduce the possibility of leakage.

Racing Beat

$call
11447

Lightweight Steel Flywheel 89-92 Non-Turbo

The weight of the stock flywheel is 22 lbs (89-92) compared to 17 lbs for the Racing Beat Flywheel. The actual reduction in inertia from stock is much greater than the weights suggest, since the stock flywheel is 1 to 2 inches thick at its outside edge. We recommend replacing the throw-out bearing during any clutch work to ensure trouble free performance.

Racing Beat

$call
11445

Lightweight Steel Flywheel 87-88 Turbo II

The weight of the stock flywheel is 28 lbs (87-88), compared to 17 lbs for the Racing Beat Flywheel. The actual reduction in inertia from stock is much greater than the weights suggest, since the stock flywheel is 1 to 2 inches thick at its outside edge. The Lightweight Steel Flywheel will bolt up to any pressure plate that will bolt to the stock flywheel (except the Rotary Pickup), and it uses the original bolts.

Racing Beat

$call
11464

Aluminum Flywheel 86-88 Non-Turbo

The weight of the stock flywheel is 24 lbs compared to 12 lbs for the Racing Beat flywheel. Replacement friction plates are available, see part number 11431.

Racing Beat

$call
11465

Aluminum Flywheel 89-92 Non-Turbo

The weight of the stock flywheel is 17 lbs compared to 12 lbs for the Racing Beat flywheel. The kit includes the rear balance weight and all the hardware necessary for installation, including special bolts which attach the pressure plate without modification.

Racing Beat

$call
11448

Aluminum Flywheel 87-88 Turbo II

The weight of the stock flywheel is 28 lbs compared to 12 lbs for the Racing Beat flywheel.

Axle upgrades

$call

FC3S TII and FD3S 800HP axle bar upgrade

This is the center bar upgrade for the TII and FD RX-7. The inner and outer c.v. on these cars are made from jis spec, which is very close to 4130 chrome moly (very good). So what is offered is a set of center bars which replaces the part that breaks. The factory bars are brittle and cannot handle the shock factors from higher horsepower rotaries. The center bars are made from 300M material that is specially heat treated, double tempered, destressed, with rolled splines for that extra strength. Ready to install.

Introducing Guru Racing Motorsport Products

For the serious race enthusiast! Are you ready to move to the next level with clutchless shifting? Improve your lap times and keep more power to the wheels while shifting.

Guru Racing is located in the motorsport capital of Victoria, Australia. It is well known that much of the latest technological developments in Australian motorsport are sourced from Victoria, in particularly Mazda performance product range. Guru has been long regarded as a premier developer, tester and supplier of the highest quality products for RX-7 racecars. Through RotorSports Racing's affiliation with Guru Motorsports, we are able to import various components by Guru and offer installation and service for the various applications.

So not only providing a performance improvement product but adding a substantial safety factor with approximately 25% less inertia than a 7.25" clutch for improved acceleration.

Applications based on generation 2 & 3 (Series I-VI) turbo RX7's and are a direct bolt in without modification. The kit comes with thrust bearing and housing as well as gearbox thrust bearing support.

Technical Specifications:

Flywheel:

• Flywheel currently delivered for the RX7 Turbo case transmissions
• RX7 Generation 1-3 (Series I-VI)
• Direct fitment within bell-housing with no modifications necessary
• No ring gear as teeth directly cut onto flywheel
• Flywheel heat treated and black oxidised

Clutch:

• Suit AP, Tilton and Quarter Master (QM) 5.5" clutch assemblies
• Delivered with custom thrust bearings & mount as well as gearbox thrust bearing slider nose

Material:

• All component are precision manufactured
• 4140 Chrome Moly
• Heat treated and black oxidised

This is a special order product.
US prices are subject to exchange rates at time of order.
$call
Plus shipping

GURU Dog Engaged Transmission

Using the latest advanced dog geometry and tooth profiles, Guru Racing have produced a unique gear-set that reduces friction for increased horsepower.The transmissions are currently running in front running circuit cars throughout Australia and are holding most current lap records in cars up to 600hp. Also excellent success in daily driven RX7's and drag cars.

Gen 3 (FD) dogbox pics

Technical Specifications:

• Case / Strength: Gear-set currently delivered for the RX7 Turbo Case & FD Case· RX7 Gen 1 - 3 (Series I - VI)· Other transmission casings currently under development.
• Direct fitment into case with all standard tail and input shaft splines.
• Less casing load longitudinally.
• Hardened Bearing Retainer Plate and high volume billet aluminium sump adds case strength and rigidity and well as providing increased volume and cooling fins for oil storage.

Gear-set:

• Unique two piece mainshaft designs, with the rear section material able to absorb sever shock load on transmission components in high horsepower applications.
• Latest specification low drag 5 straight (dog) tooth engagement profile precision finished & heated for maximum strength and quick bed in time.
• Cut on 5 axis CNC gear-cutter.
• Arc crowned for maximum strength.
• All gears needle rolled including reverse idler for minimum horsepower drain and heat build up in high rpm applications.
• Internally lightweighted gears and shift hubs to minimise weight and engine inertia.
• Press of dog rings on input shaft (2nd & 3rd Gears) to keep costs down to a minimum on rebuilds.
• All sliding dog rings interchangable with the latest 5 dog design to stop any miss shifting at super high rpm's and speeds up-shifts to better your ET's or lap times.

General:

• In Excess of 80 components supplied in kit including high performance bearings and a complete sealing kit.
• Comes with precision shifter kit that can be shortened to desired length (Short throw shift mechanism).
• Billet shifter side plate and plunger kit supplied, which allows side spring adjustments on shifter to individual requirements.
• HD Bolt kit supplied to prevent bolt stretch and add to case stiffness.
• Double interlocker system to prevent any chance of selecting more than one gear in the most severe shifting conditions combined with detent springs.
• Hardened selector rods and billet forks.
• Shift times are measured down to 35 milliseconds.
• Exceptionally drivable on both the road, track and strip

Material & Options:

• All components except the casing are precision manufactured.
• The gears are made from EN36VARAerospace Vacuum arc remolt case hardened.
• Billet Sump for case rigidity & extra oil capacity options.
• Bearing Spread Support Plate

Maintenance / Fitting:

• No Case modifications necessary which allows quick turn around and less time off the road, track or strip.
• Design enables exceptionally easy transmission assembly and maintenance.
• Changeable dog rings on 4th & 5th gears.
• All gears slide on cluster shaft for easy assembly & disassembly.
• All spare parts available.
• Complete manufactures Limited Warranty.
• No additional costs of fitting non standard transmission, tail-shaft cross-member, clutch, bell-housing etc

Final Drive Ratio used during technical analysis: 10/44 (4.4)

Standard (Turbo II):

The ratios have been implemented to maintain the engine in its maximum horsepower range at all time.

Guru Dogbox:

This is a special order product.
US prices are subject to exchange rates at time of order.
$call
Plus shipping

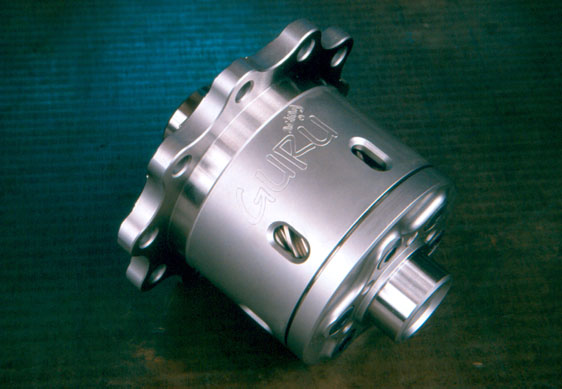

Guru Torque Biasing Differential

GURU Racing has produced a automatic torque biasing differential, it is designed to prevent loss of drive to wheels without locking together, while still applying some torque to the slipping wheel.

This progressive action applies all remaining torque to the wheel with the most traction, which is the best design to gain maximum grip under varying track or surface conditions, also leading to improved controllability and cornering compared with a standard LSD unit.

Technical Specifications:

Applications:

• Currently delivered for all Mazda axles plus Ford 28sp
• Suits Mazda models RX2 - RX7 (Generation 1, Series I - III) & MX5
• Suitable for road and race applications

General:

• Large bias ratio through variable torque proportioning
• Less bias change due to less internal wear
• More consistent under various temperature ranges
• No special LSD oil or additives needed
• Improved controllability and drivability

Material:

• All component are precision manufactured
• Manufactured from case hardened Billet AE 8620

This is a special order product.
US prices are subject to exchange rates at time of order.
$call
Plus shipping
